DRY CABINETS AND TRACEABILITY

DR. STORAGE DRY CABINETS, BAR TECTOR VERIFICATION AND TRACEABILITY AND HUMITEL SOFTWARE AND SENSOR DESIGNED FOR THE CONTROL OF MOISTURE SENSITIVE DEVICES (MSD).

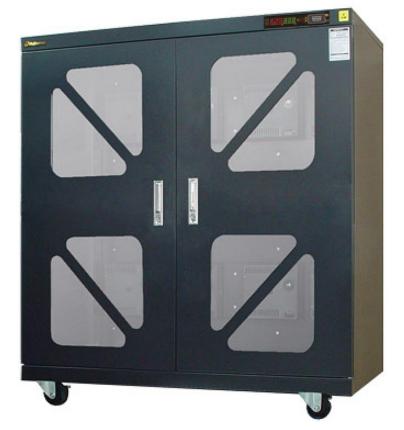

X2M-315

5%RH Dry Cabinet

▲Function:
X2M type is a plug and play, fully auto-dry cabinet which will be stable at ＜5%RH. There is no
need to set the panel buttons at all. It is especially designed for moisture sensitive SMD
packages to comply with J-STD-033B.
Memo cards: Special "Slash Door" design to allow inseting the memo cards which can record
the necessary storage information of MSD management.

▲Specifications:
Humidity Range: ＜5%RH
Outside Dimension: W905*D452*H1045mm
Capacity: 334L
Shelves: 3 shelves
Color: black
Voltage: 110V/230V (select voltage in advance)
Display Precision: ±1℃, ±3%RH
Software: Humidity Manager V2 for drawing the curve of RH and temperature.
Structure: 1mm thick carbon steel with antistatic paint.
Door: Handles, airtight magnetic sealers and antistatic glass.
Wheel: four antistatic 3” wheels, two of them with brakes.
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 103
~109
Ω. (surface resistance)
Power Consumption: Ave. 55Wh; Max. 295W
